Trade Show Graphic Design Tips: What to Put on Your Display (and Where)
Short answer: put your logo and a short headline in the top third of your backwall, one strong image at eye level, and nothing important below about 3 feet. Size headline letters at least 1 inch tall for every 10 feet of viewing distance, keep the message to a few words, and let your booth staff explain the details.
Attendees walk past a booth in a few seconds. Most industry sources put the window at 3 to 5 seconds to catch someone's eye and tell them who you are. That's a rule of thumb, not a lab measurement, but anyone who has worked a show floor knows it's about right. Your graphics don't need to close the sale. They need to make the right people stop.
Where should things go on a trade show backwall?
Think of your backwall in three zones. Tables, counters and people block the bottom of the wall, and the top is what people see from down the aisle.
- Top third (about 6–8 ft): your logo and a headline that says what you do or what problem you solve. This is the part people see over the crowd from 20–30 feet away.
- Eye level (about 3–6 ft): one strong image (your product, your result, your customer) and, at most, two or three short points.
- Below about 3 ft: assume it will be hidden by a table, a counter or a person standing in front of it. Use background color here, not text or logos.
How big should text be on a trade show display?
The standard sign rule is 1 inch of letter height for every 10 feet of viewing distance. Freeman's exhibit graphics guide uses the same rule. Treat it as the minimum. Bigger is easier to read in a busy, badly lit hall.
| Where it's read from | Minimum capital letter height |
|---|---|
| Inside the booth (3–5 ft) | ½ inch |
| Front edge of the booth (10 ft) | 1 inch |
| Across the aisle (20 ft) | 2 inches |
| Down the aisle (30 ft) | 3 inches or more |
On a full-size backwall your headline should be 3 inches tall or more. A quick check: print your design on letter paper, tape it to a wall, and step back. If you can't read it from about 4 feet away, it's too small for the real thing at full size.
How much text should be on a trade show display?
Less than you think. Many exhibitors fill the wall with bullet points that nobody reads, and a crowded wall can actually stop people from coming in. It's your staff's job, not your display's job, to explain the details.
A formula that works for most booths:
Logo + one short benefit headline (about 7 words or fewer) + one strong image.
Example: instead of "ABC Corp: industrial pumps, valves, fittings, service, repair and custom fabrication since 1985," try "Pumps that don't quit." with one photo of your best-known product.
Your website, phone number and long product lists belong on your handouts, counter or table throw, not the backwall headline.
What colors work best?
Contrast matters more than any one color. Dark text on a light background, or light text on a dark background, reads best from a distance. Avoid putting text over a busy photo. If you have to, add a solid or semi-transparent panel behind the words.
- Stay on brand. Use your brand colors, and give us Pantone coated references so we can match them as closely as possible.
- Use one bold accent color to pull the eye to your headline or product, not five.
- Check the show's carpet and neighbors. A white wall can look gray under poor hall lighting. A saturated background usually holds up better.
Design for the display you're actually using
Graphics that look great as a flat file can fail on the hardware. Before you design, download the right template for your display and check these:

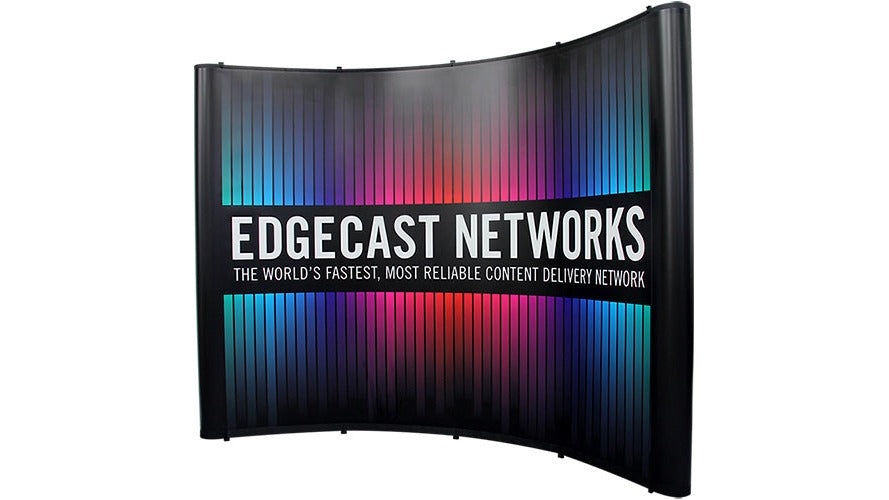

- Curved walls: keep logos and text away from the outside edges of a curved wall, where they wrap out of view.
- Pop-up end caps and wraps: the end panels wrap around the frame, so don't put anything important on a fold.
- SEG (silicone edge) frames: the edge of the fabric tucks into the frame channel. Keep text and logos inside the safe area shown on the template.
- Bleed and safe area: every template has a bleed (extra background that gets trimmed or wrapped) and a safe area. Keep text and logos inside the safe area.
- Coordinate the set: backwall, counter, table throw and banner stands should look like one brand, with the same colors, logo placement and headline style.
How big should a QR code be on a trade show display?
Use the 10:1 rule: the scanning distance should be no more than about 10 times the width of the code.
- Counter or table, scanned from about 3 ft: at least 3.5–4 inches wide.
- Backwall, scanned from about 6 ft: at least 7–8 inches wide.
- Keep a white border around the code, use dark on light, and don't put it below about 3 ft on a backwall where people will block it.
- Test the printed proof with a couple of different phones before the show.
Designing for backlit displays
Backlit fabric graphics glow, which is great for getting noticed, but the light changes how the design looks.
- Large areas of light color can look washed out when lit. Rich, saturated backgrounds usually look better.
- Very thin text and fine lines can get lost in the glow. Use bolder weights.
- Ask us about backlit-specific fabric and file setup before you finalize the design.
What resolution do trade show graphics need?
For most backwalls and banner stands, 100–200 ppi at full print size is plenty, because people view them from several feet away. You don't need 300 ppi at full size. Images saved from websites are almost always too small, so start with original photos or licensed stock at the largest size available. Use a vector version of your logo (AI or EPS) whenever you can.
For the full explanation, see What Resolution Do Trade Show Graphics Need?
Before you send files, run this checklist:
- Logo and headline in the top third, readable from 20+ ft
- Nothing important below about 3 ft
- Headline 7 words or fewer, 3 inches tall or more
- Text and logos inside the template's safe area
- Images 100–200 ppi at full size, logos in vector format
- Brand colors given as Pantone coated references
- QR code sized with the 10:1 rule and tested
Helpful resources
- Design templates for every display we sell
- File setup instructions
- Upload your art
- Types of trade show graphics (dye-sub fabric, rigid panels, banner film and vinyl)
- Trade show graphics resolution guide
Want help designing your graphics?
Our designers can lay out your display artwork on the correct template for you. Design time is billed at $100 per hour, and we estimate the time before starting. Call 540-438-9933 or email sales@tradeshowdirect.com.
Graphic design servicesDownload templatesCommon questions
What file format should I send for printing?
A packaged Adobe Illustrator (.ai) file built on our template is best, with fonts outlined or included and linked images at 100–200 ppi at full size. High-resolution CMYK JPGs are also accepted. We don't accept Photoshop (.psd) or PDF files. See the file setup instructions for details.
Will your designers follow my brand guidelines?
Yes. Send your brand guide with your order, and our designers will follow its colors, fonts and logo rules.
What fonts work best?
Bold, simple sans-serif fonts read best from a distance. Avoid thin or script fonts for anything important, and outline your fonts before you send the file.
Can I use photos I find online?
Only if you have the rights to them. Use your own photos or licensed stock, which also gives you the large file sizes print needs.
